Jayco Pinnacle Fifth Wheel RVs For Sale
The Pinnacle fifth wheels by Jayco are setting the bar for luxury, technology features, and eye-catching exteriors! Towing is made hassle-free thanks to the 5 Star Handling Package that includes a MORryde rubber pin box, Goodyear Endurance Tires, and Dexter axles with Nev-R-Adjust brakes, so come along!

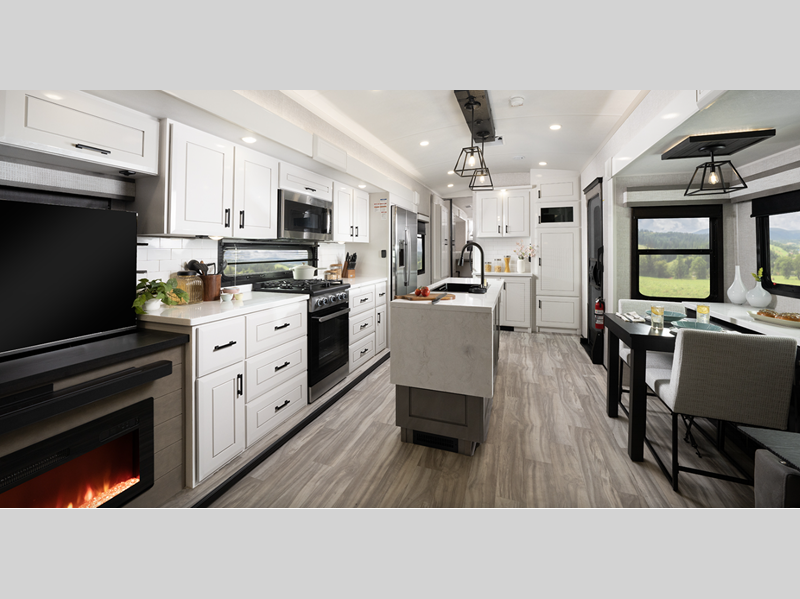

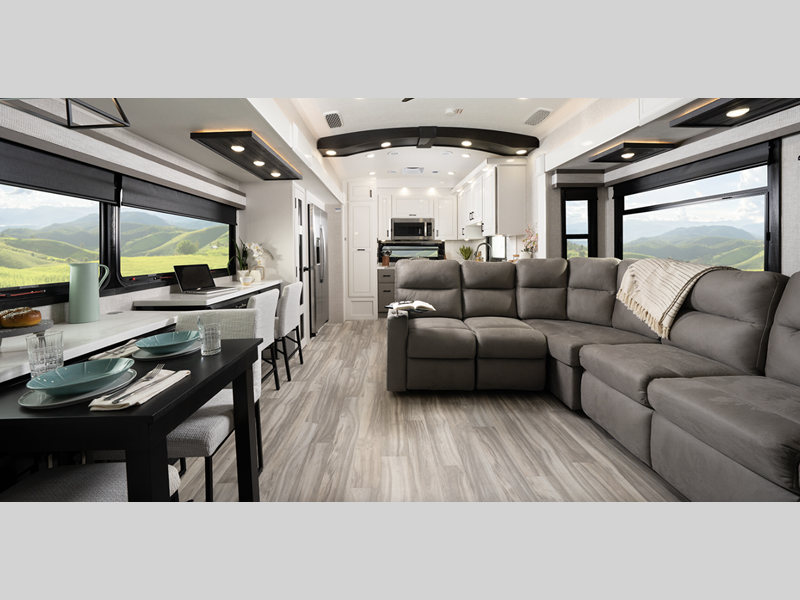

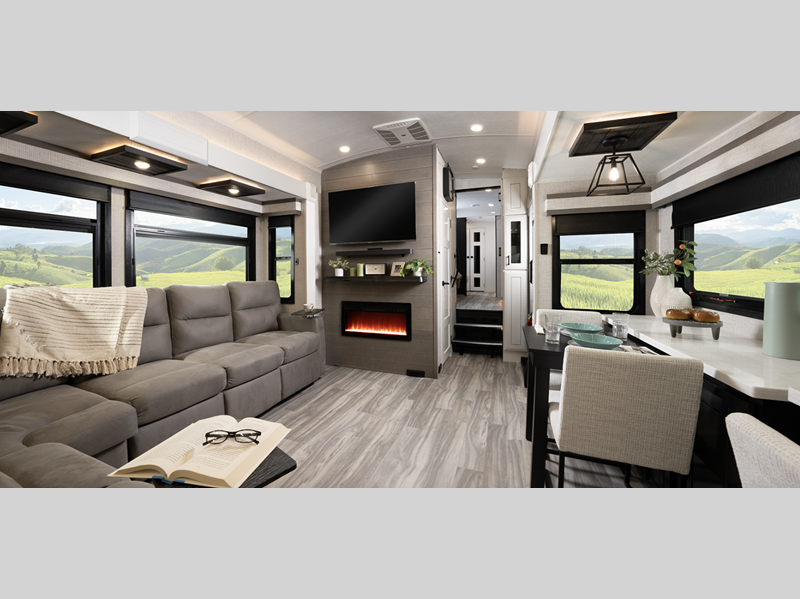

Step inside and find Vintage or Modern Farmhouse interior decor paired with solid hardwood cabinetry, (made in USA) vinyl flooring, and LED accent lighting above the slide outs. The JayCommand "Smart RV" system will make setting up your fifth wheel easier than ever, plus there is a JayVoice command system to control the lighting, A/C, and furnace without even having to get off of the sofa. You will appreciate the 102" wide body construction creating open living spaces, and each model includes a pass-through storage with Slam-Latch baggage doors so nothing needs to be left behind.
Comfort comes standard in a Pinnacle fifth wheel by Jayco. Choose your favorite floorplan today!
-
Pinnacle 36FBTS
Jayco Pinnacle fifth wheel 36FBTS highlights: Spacious Master Bath Fireplace Two ... more about Pinnacle 36FBTS
Specifications
Sleeps 4 Slides 3 Length 40 ft 6 in Ext Width 8 ft 6 in Ext Height 13 ft 4 in Int Height 8 ft 6 in Interior Color Modern Farmhouse, Vintage Farmhouse Exterior Color Midnight Charcoal, Midnight Gold, Silver Metallic Hitch Weight 2540 lbs GVWR 17500 lbs Dry Weight 14240 lbs Cargo Capacity 3260 lbs Fresh Water Capacity 75 gals Grey Water Capacity 87 gals Black Water Capacity 87 gals Tire Size 215/75R17.5'H Furnace BTU 40000 btu Available Beds King Refrigerator Type Residential Refrigerator Size 21 cu ft Convection Cooking Yes Cooktop Burners 4 Number of Awnings 2 LP Tank Capacity 40 lbs. Water Heater Capacity 16 gal Water Heater Type Gas/Electric DSI AC BTU 30000 btu TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV Awning Info 11' and 19' Electric with LED Lights Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 3 Shower Type Walk-In Shower Electrical Service 50 amp Similar Floorplans
-
Pinnacle 36SSWS
Jayco Pinnacle fifth wheel 36SSWS highlights: Spacious Walk-In Shower Bedroom ... more about Pinnacle 36SSWS
Specifications
Sleeps 4 Slides 3 Length 40 ft Ext Width 8 ft 6 in Ext Height 13 ft 3 in Int Height 8 ft 6 in Interior Color Modern Farmhouse, Vintage Farmhouse Exterior Color Diamond, Sand, Steel Hitch Weight 2915 lbs GVWR 17650 lbs Dry Weight 14735 lbs Cargo Capacity 2915 lbs Fresh Water Capacity 75 gals Grey Water Capacity 87 gals Black Water Capacity 50 gals Tire Size 215/75R17.5"H Furnace BTU 40000 btu Available Beds King Refrigerator Type Residential Refrigerator Size 21 cu ft Convection Cooking Yes Cooktop Burners 4 Number of Awnings 2 LP Tank Capacity 40 lbs. Water Heater Capacity 16 gal Water Heater Type Gas/Electric DSI AC BTU 30000 btu TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV Awning Info 10' and 19' Electric with LED Lights Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 3 Shower Type Shower w/Seat Electrical Service 50 amp Similar Floorplans
-

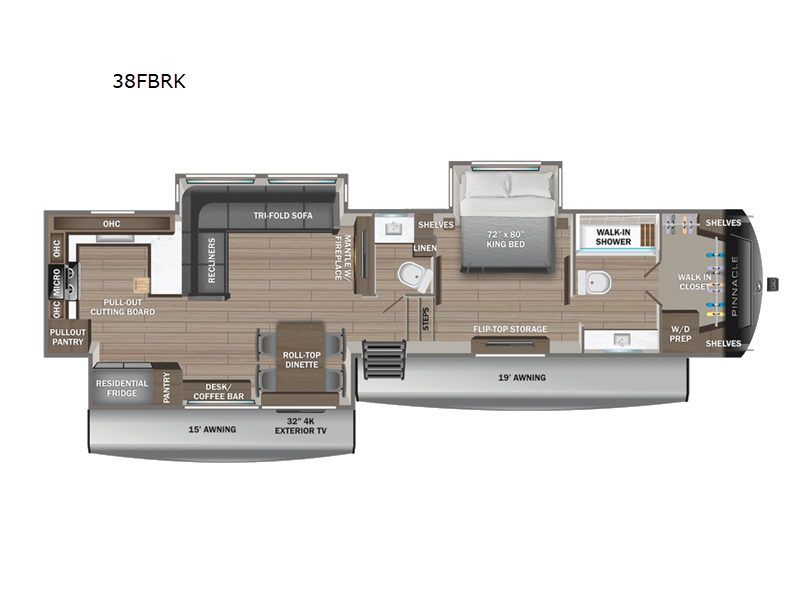

Pinnacle 38FBRK
Jayco Pinnacle fifth wheel 38FBRK highlights: Rear Kitchen King Bed Slide Out ... more about Pinnacle 38FBRK
Featured 38FBRK
Specifications
Sleeps 4 Slides 3 Length 43 ft 10 in Ext Width 8 ft 6 in Ext Height 13 ft 5 in Int Height 8 ft 6 in Interior Color Modern Farmhouse, Vintage Farmhouse Exterior Color Midnight Charcoal, Midnight Gold, Silver Metallic Hitch Weight 2975 lbs GVWR 18000 lbs Dry Weight 15330 lbs Cargo Capacity 2870 lbs Fresh Water Capacity 75 gals Grey Water Capacity 87 gals Black Water Capacity 50 gals Tire Size 215/75R17.5'H Furnace BTU 40000 btu Available Beds King Refrigerator Type GE Residential Refrigerator Size 21 cu ft Convection Cooking Yes Cooktop Burners 4 Number of Awnings 2 LP Tank Capacity 40 lbs. Water Heater Capacity 16 gal Water Heater Type Gas/Electric DSI AC BTU 30000 btu TV Info LR 50" 4K Smart LED HDTV, BR & Ext 32" 4K Smart LED TV Awning Info 15' & 19' Electric with LED Lights Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 3 Shower Type Shower w/Seat Electrical Service 50 amp Similar Floorplans
-
Pinnacle 32RLTS
Jayco Pinnacle fifth wheel 32RLTS highlights: Walk-In Shower with a Seat Kitchen ... more about Pinnacle 32RLTS
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 3 Length 36 ft 5 in Ext Width 8 ft 6 in Ext Height 13 ft 3 in Int Height 8 ft 6 in Interior Color Modern Farmhouse, Vintage Farmhouse Exterior Color Midnight Charcoal, Midnight Gold, Silver Metallic Hitch Weight 2485 lbs GVWR 16600 lbs Dry Weight 13530 lbs Cargo Capacity 3070 lbs Fresh Water Capacity 75 gals Grey Water Capacity 87 gals Black Water Capacity 50 gals Tire Size 215/75R17.5"H Furnace BTU 40000 btu Available Beds King Refrigerator Type Residential Refrigerator Size 21 cu ft Convection Cooking Yes Cooktop Burners 4 Number of Awnings 2 LP Tank Capacity 40 Water Heater Capacity 16 gal Water Heater Type Gas/Electric DSI AC BTU 30000 btu TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV Awning Info 10' and 16' Electric with LED Lights Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 3 Shower Type Walk-In Shower Electrical Service 50 amp Similar Floorplans
-
Pinnacle 37MDQS
Jayco Pinnacle fifth wheel 37MDQS highlights: Four Slides Residential ... more about Pinnacle 37MDQS
Have a question about this floorplan? Contact Us
Specifications
Sleeps 8 Slides 4 Length 41 ft 8 in Ext Width 8 ft 6 in Ext Height 13 ft 3 in Int Height 8 ft 6 in Interior Color Modern Farmhouse, Vintage Farmhouse Exterior Color Midnight Charcoal, Midnight Gold, Silver Metallic Hitch Weight 3100 lbs GVWR 18400 lbs Dry Weight 15315 lbs Cargo Capacity 3085 lbs Fresh Water Capacity 75 gals Grey Water Capacity 87 gals Black Water Capacity 50 gals Tire Size 215/75R17.5"H Furnace BTU 40000 btu Available Beds King Refrigerator Type Residential Refrigerator Size 21 cu ft Convection Cooking Yes Cooktop Burners 4 Number of Awnings 2 LP Tank Capacity 40 lbs. Water Heater Capacity 16 gal Water Heater Type Gas/Electric DSI AC BTU 30000 btu TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV, Den/Office TV Awning Info 10' and 19' Electric with LED Lights Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 3 Shower Type Walk-In Shower Electrical Service 50 amp Similar Floorplans
-
Pinnacle 38FLGS
Jayco Pinnacle fifth wheel 38FLGS highlights: Spacious Rear Bath King Bed Slide ... more about Pinnacle 38FLGS
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 4 Length 44 ft 5 in Ext Width 8 ft 6 in Ext Height 13 ft 5 in Int Height 8 ft 6 in Interior Color Modern Farmhouse, Vintage Farmhouse Exterior Color Midnight Charcoal, Midnight Gold, Silver Metallic Hitch Weight 2900 lbs GVWR 18500 lbs Dry Weight 15455 lbs Cargo Capacity 3045 lbs Fresh Water Capacity 75 gals Grey Water Capacity 82.5 gals Black Water Capacity 74 gals Tire Size 215/75R17.5'H Furnace BTU 40000 btu Available Beds King Refrigerator Type Residential Refrigerator Size 21 cu ft Convection Cooking Yes Cooktop Burners 4 Number of Awnings 2 LP Tank Capacity 40 lbs. Water Heater Capacity 16 gal Water Heater Type Gas/Electric DSI AC BTU 30000 btu TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV, Kit. 32" TV Awning Info 14' Electric with LED Lights Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 3 Shower Type Walk-In Shower Electrical Service 50 amp Similar Floorplans
-
Pinnacle 38KPTS
Jayco Pinnacle fifth wheel 38KPTS highlights: Dishwasher 32" Bedroom TV Roll-Top ... more about Pinnacle 38KPTS
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 3 Length 41 ft Ext Width 8 ft 6 in Ext Height 13 ft 4 in Int Height 8 ft 6 in Interior Color Modern Farmhouse, Vintage Farmhouse Exterior Color Midnight Charcoal, Midnight Gold, Silver Metallic Hitch Weight 2870 lbs GVWR 17700 lbs Dry Weight 14535 lbs Cargo Capacity 3165 lbs Fresh Water Capacity 75 gals Grey Water Capacity 87 gals Black Water Capacity 50 gals Tire Size 215/75R17.5"H Furnace BTU 40000 btu Available Beds King Refrigerator Type Residential Refrigerator Size 21 cu ft Convection Cooking Yes Cooktop Burners 4 Number of Awnings 2 LP Tank Capacity 40 lbs. Water Heater Capacity 16 gal Water Heater Type Gas/Electric DSI AC BTU 30000 btu TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV Awning Info 11' and 17' Electric with LED Lights Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 3 Shower Type Walk-In Shower Electrical Service 50 amp Similar Floorplans
-

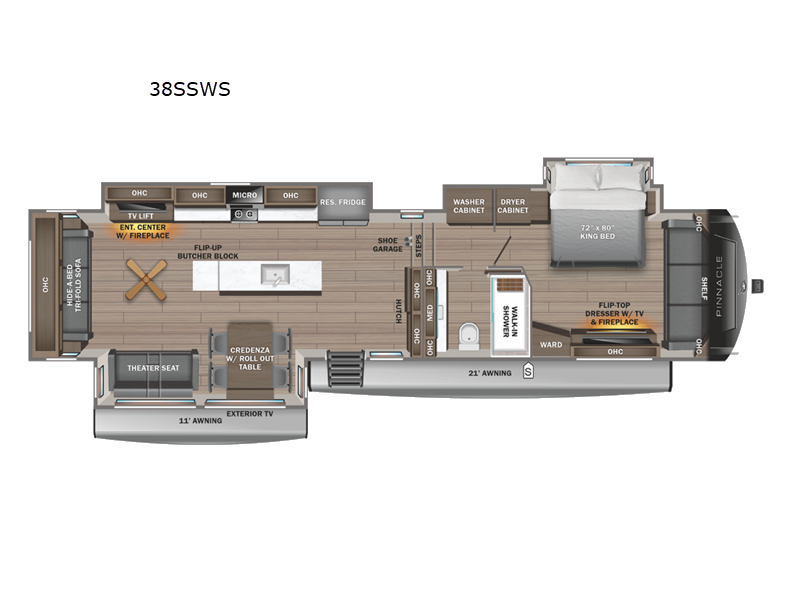

Pinnacle 38SSWS
Jayco Pinnacle fifth wheel 38SSWS highlights: Spacious Walk-In Shower Bedroom ... more about Pinnacle 38SSWS
Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Slides 3 Interior Color Modern Farmhouse, Vintage Farmhouse Exterior Color Midnight Charcoal, Midnight Gold, Silver Metallic Tire Size 215/75R17.5"H Furnace BTU 40000 btu Available Beds King Refrigerator Type Residential Refrigerator Size 21 cu ft Convection Cooking Yes Cooktop Burners 4 Number of Awnings 2 LP Tank Capacity 40 lbs. Water Heater Capacity 16 gal Water Heater Type Gas/Electric DSI AC BTU 30000 btu TV Info LR 50" Smart LED HDTV, BR & EXT 32" 4K Smart LED TV Awning Info 10' and 19' Electric with LED Lights Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 3 Shower Type Shower w/Seat Electrical Service 50 amp Similar Floorplans
Pinnacle Features:
Standard Features (2025)
Exterior Equipment
- (3) 40 lb. LP propane bottles with auto regulator (120 lb. max LP system)
- 102 in. widebody construction
- 12 in. structural steel I-beam with 10 in. steel drop frame
- 120V heat blankets on all tanks plus 12V heat tape on fresh water line
- 3,000 lb. tow hitch with 4-way pin
- Battery disconnect
- Built in sewer hose carrier
- Climate Shield™ zero-degree tested weather protection:
- 40,000 BTU output furnace
- Double layer fiberglass batt insulation (roof and floor)
- Fully enclosed and heated underbelly (ducted)
- PEX plumbing, 2 in. block foam and reflective foil
- Custom automotive-grade vinyl exterior graphics package
- Digital TV antenna with 5G Wi-Fi extender
- Exterior marine-grade speakers with Bluetooth® controller
- Frameless dark tinted safety-glass windows
- Fully enclosed, universal docking center:
- Black tank flush
- Independent satellite wiring
- Quick-connect outside shower
- Selectable water connections
- Whole coach cable hookups
- Winterization and sanitation hookups
- Inverter pre-wire to select outlets
- JayPort outside griddle prep (standard on all floorplans without a standard outside kitchen)
- JaySMART™ (Safety Markers And Reverse Travel) LED lighting (patented)
- LED exterior lighting package
- Magnum Truss™ XL6™ Roof System (strongest tested roof in the industry) with Alpha roof membrane system with limited lifetime warranty
- Painted fiberglass front and rear cap with clear coat and built-in specialty LED lighting
- Pass-through storage with Slam-latch™ baggage doors
- Skirt metal enclosed drop frame
- Stronghold VBL™ aluminum framed and vacuum bond laminated gel coated fiberglass exterior walls (including slide room end walls)
- Under-mounted spare tire
- Water heater bypass
Standard Interior Equipment
- 12V charging station
- 5/8 in. tongue-and-groove joined plywood floor and 3/8 in. plywood roof decking
- Bathroom skylight
- Built in spice rack in kitchen cabinet (select models)
- Built-in laundry hamper in wardrobe (select models)
- Carbon monoxide and LP detector

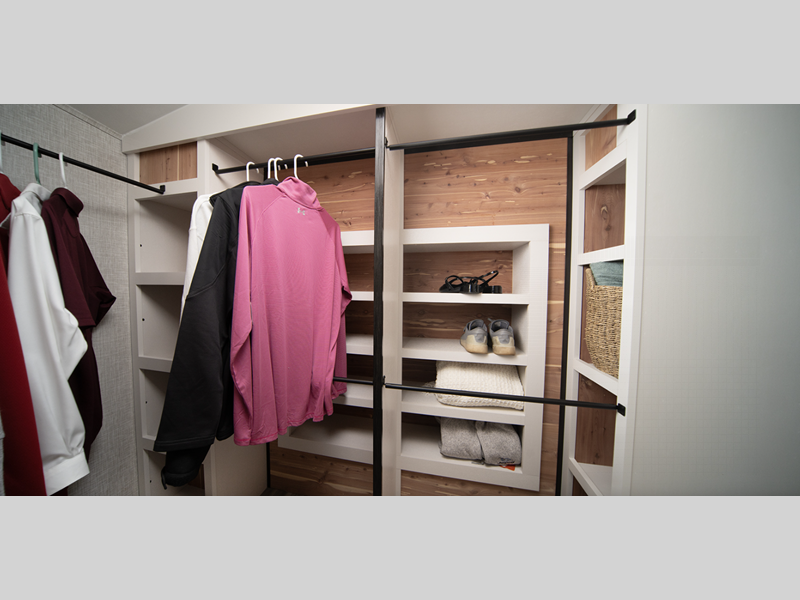

- Cedar-lined front wardrobe closet
- Ceiling fan (select models)
- CPAP prepped bedroom
- Extra 120V power outlets in kitchen and slide rooms
- Flip-up countertop extension/bar top (select models)
- Flip-up hidden storage in bedroom chest of drawers (select models)
- Flip-up tabletop storage next to tri-fold sofa (select models)
- Gas-strutted under-bed storage
- Handcrafted hardwood glazed doors, stiles, drawers and trim
- Hidden hinges, magnet latches and soft close cabinet doors and drawers
- Integrated under-mount sink and lever faucet in main bathroom
- LED accent lighting above slideouts
- LED backlit custom framed mirror and medicine cabinet (most models)
- LED interior lighting throughout
- No in floor heat ducts throughout coach
- Pantry with adjustable shelves and pull out drawers includes 120V outlet (most models)
- Porcelain toilet with foot flush
- Removable tray tables at theater seats
- Residential "Do it all" sink with pull-out kitchen faucet, glass rinse, and vegetable rinse
- Residential dove tail jointed drawers throughout
- Residential NuVo H2O whole coach water treatment system with water softening and triple cartridge filters
- Residential quilted bedspread and pillows
- “Shoe garage” in hallway step (select models)
- Soft close, heavy-duty, 75 lb. full extension, steel ball-bearing drawer guides
- Solid hardwood slide fascia
- Stain protected fabric on all furniture
- Toe kick nightlights in bedroom, bathroom and kitchen
- Tri-fold hide-a-bed sofa with sleep surface (select models)
- Vinyl flooring (made in the USA) throughout including slide rooms
Customer Value Package (Mandatory)
- 15,000 BTU “Whisper Quiet” A/C (bedroom)
- 15,000 BTU “Whisper Quiet” A/C with heat pump (main)
- 16 gal. gas/electric DSI water heater

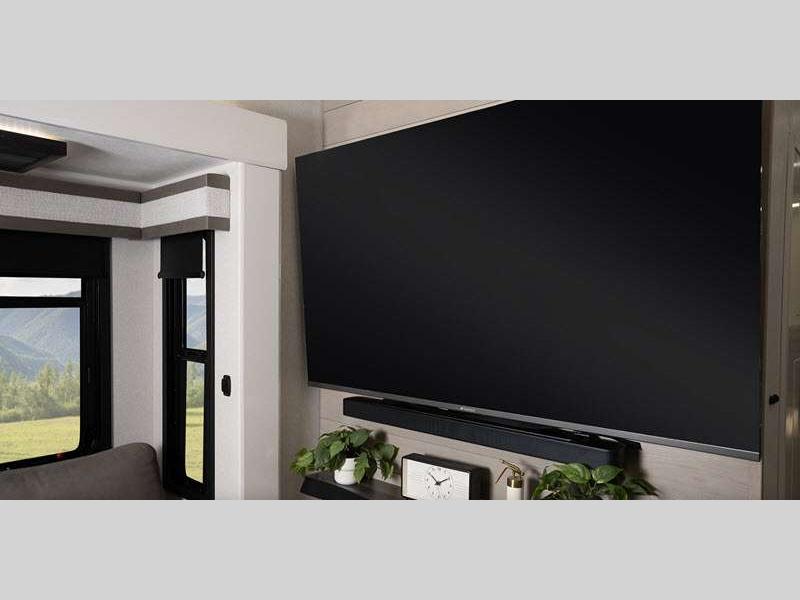

- 50 in. 4K SMART LED HDTV with fully digital HDMI® output and two additional HDMI® cables
- Backup, main entrance door and side observation security camera prep (includes a power switch in the bedroom to use the optional 7 in. monitor for security)
- Custom machined aluminum rims
- Electric patio awning with integrated RGB LED lights (multi-colored with remote control)
- Hidden hinges, magnet latches, and soft close cabinet doors
- JBL® home entertainment system with sound bar and wireless subwoofer
- Keyed-Alike™ lock system (single key for all doors/locks)
- MORryde Safe-T-Rail grab handle

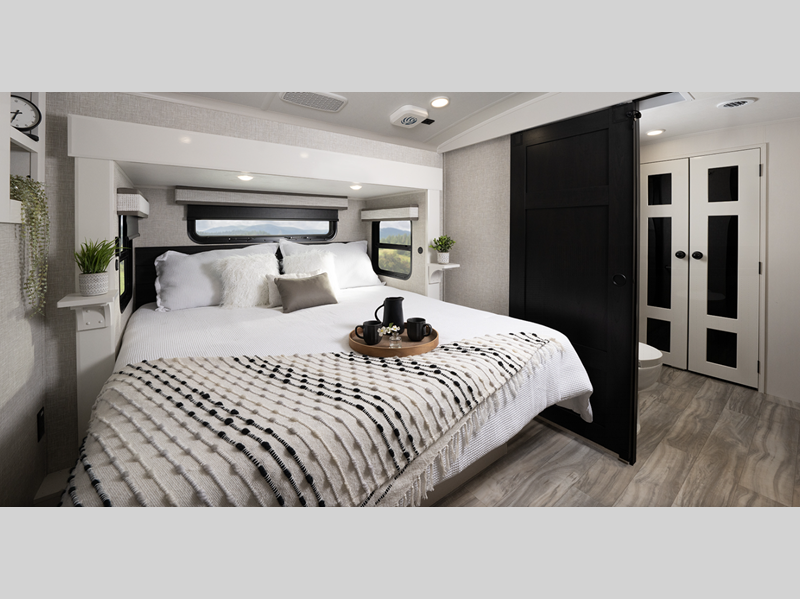

- Residential king (72 in. x 80 in.) mattress with under-bed storage
- Rooftop and ground solar prep
- Wireless remote control system (includes Bluetooth® wireless interior controls) with dimmer switches
5 Star Handling Package (Mandatory)
- 5 in. 16 ply 'H' rated Uniroyal tires
- Dexter® Axles with ABS and Tow Assist - includes Nev-R-Adjust® brakes and E-Z Lube® hubs
- MORryde® LRE-4000™ rubberized suspension
- MORryde® rubber pin box
- Wet bolt fasteners, bronze bushings and 4,000 lb. leaf springs
Luxury Package (Mandatory)
- 2nd electric patio awning with integrated RGB LED lights (multi-colored with remote control)

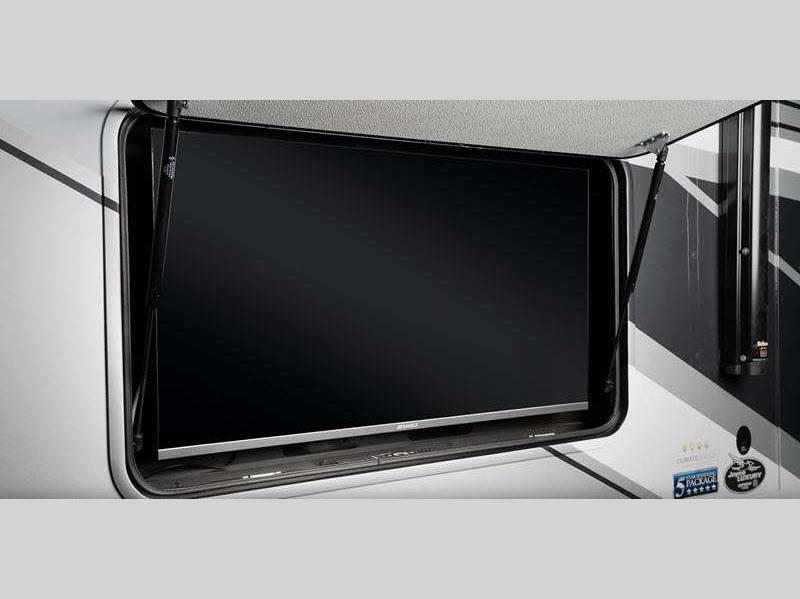

- 32 in. 4K outside Smart LED TV
- 32 in. 4K Smart LED bedroom TV
- 6-point hydraulic auto-leveling system
- Cellular prep for 5G Wi-Fi antenna and JAYCOMMAND®
- Central vacuum system with dust port
- Day/night roller shades in living room
- Frameless dark tinted safety-glass windows
- Free-standing roll top (no pedestal) table with (2) free-standing and (2) folding chairs
- GE 21 cu. ft. residential refrigerator with 1800W inverter
- GE Profile Series 30 in. residential convection microwave with built in air fryer
- GE Profile Series residential 24 in. range (3.7 cu. ft. with 9100 BTU high output burner)
- High gloss gel coated sidewalls
- JAYCOMMAND® Smart RV System
- LED fireplace with electric space heater
- MORryde® StepAbove™ entrance steps (main entrance) with strut assist
- Oversized multi-battery compartment (industry leading room for 4-6 batteries)
- Powered 50-amp cord reel
- Residential solid-surface kitchen countertop

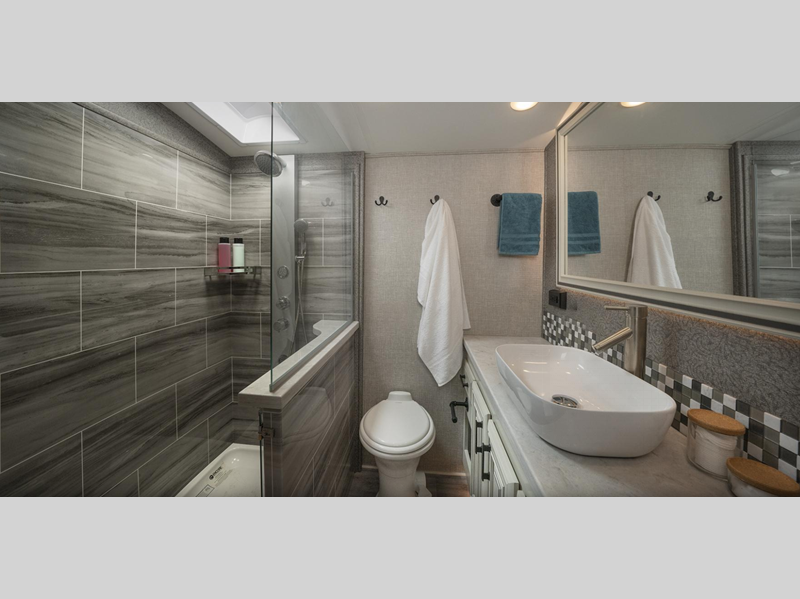

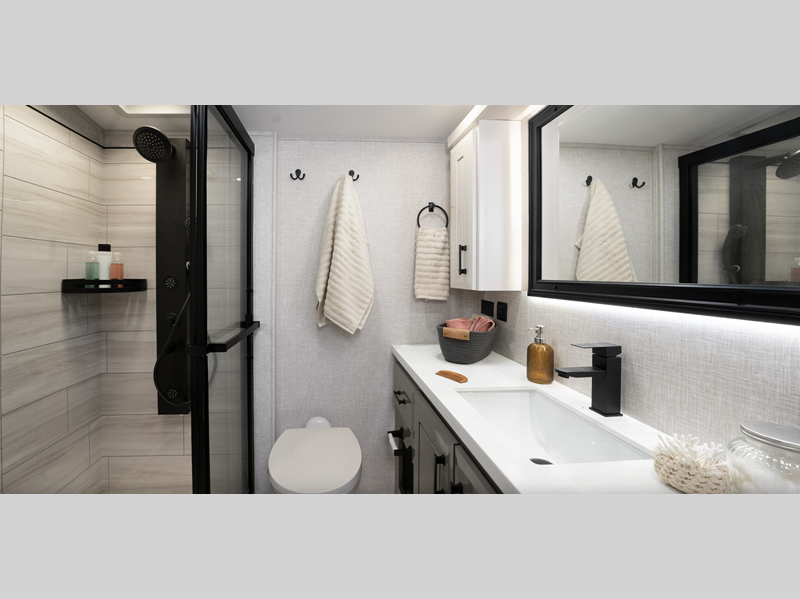

- Residential walk-in shower with shampoo/soap holder, teak seat and shower tower
- Solid hardwood cabinet doors, stiles, and fascia
- Under-sink dishwasher
- Washer/dryer prep
- Pull out "Roll Top" dinette with two free standing chairs and two folding chairs
- Residential NuVo H2O whole coach water treatment with water softening system and triple cartridge filters
Options
- 20 cu. ft. 12V refrigerator
- 3rd 15,000 BTU ducted A/C
- 5,500W Onan® Microquiet generator
- 7K hydraulic disc brake package (ABS N/A with disc brakes)
- 8K hydraulic disc brake package (ABS N/A with disc brakes)

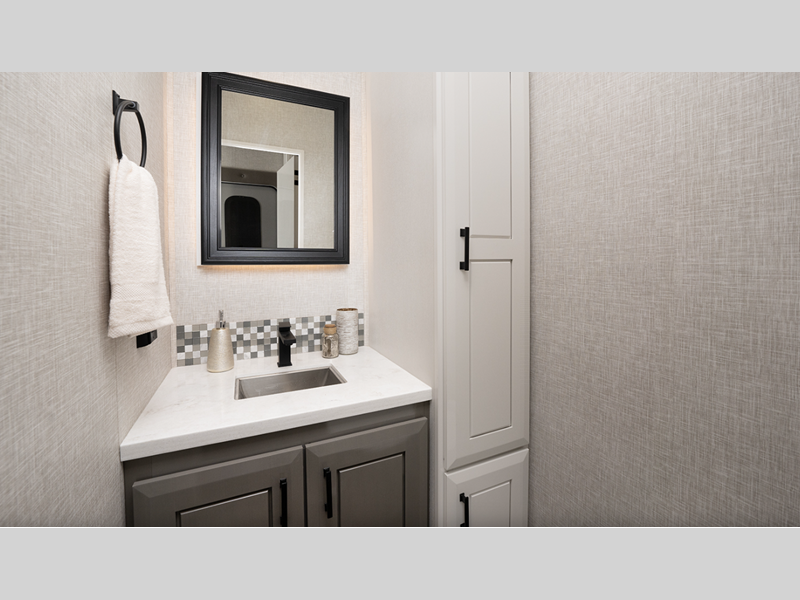

- Butler’s pantry (in place of half bath 38FLGS)
- Frameless dual-pane tinted safety-glass windows
- Front wardrobe in place of front windshield and sofa lounge (36SSWS)

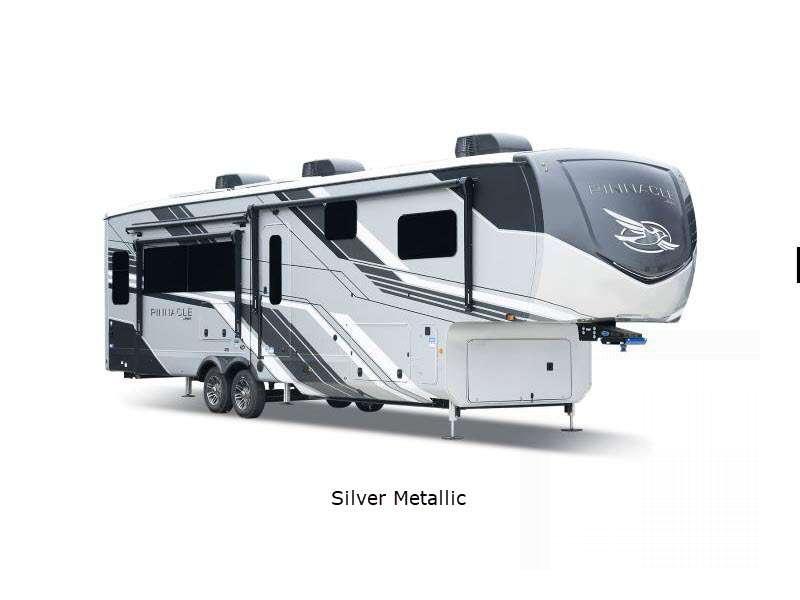

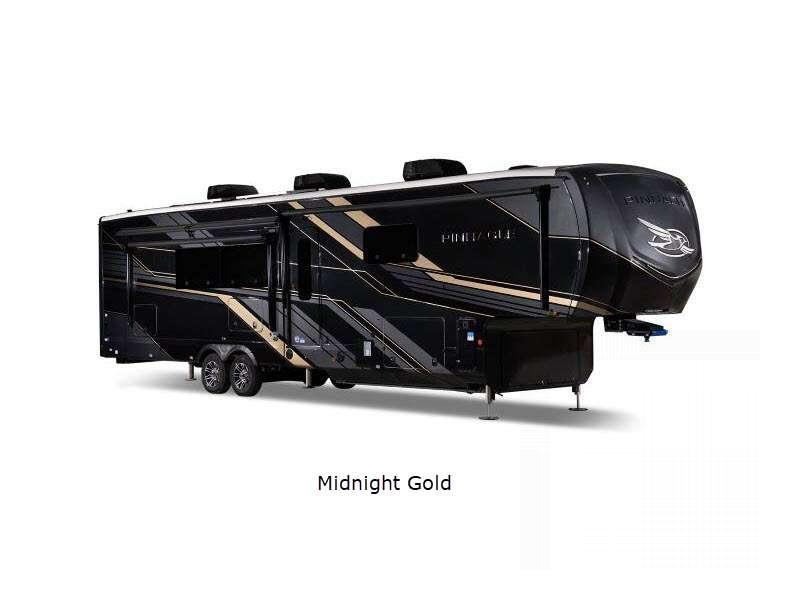

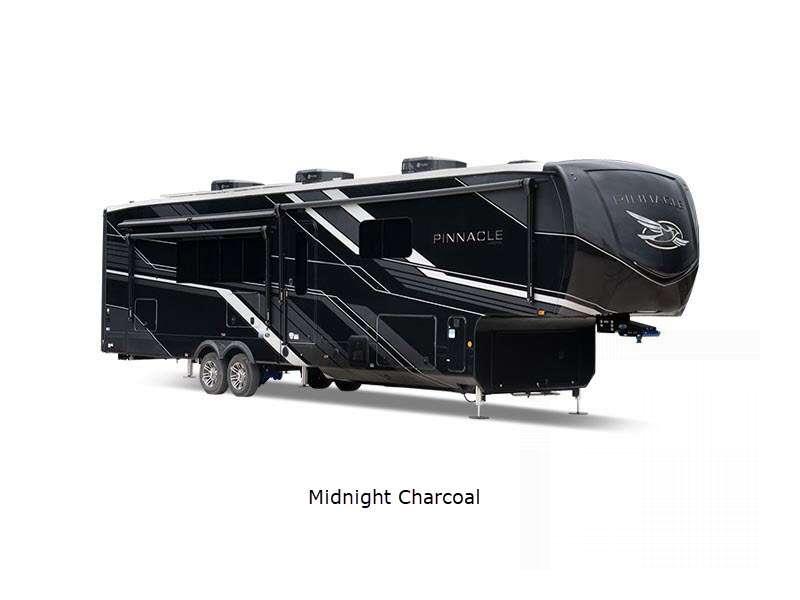

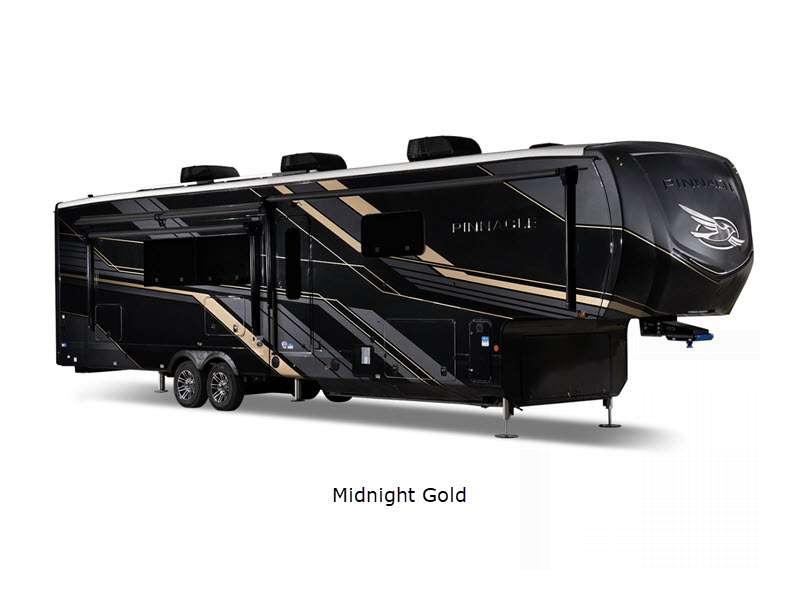

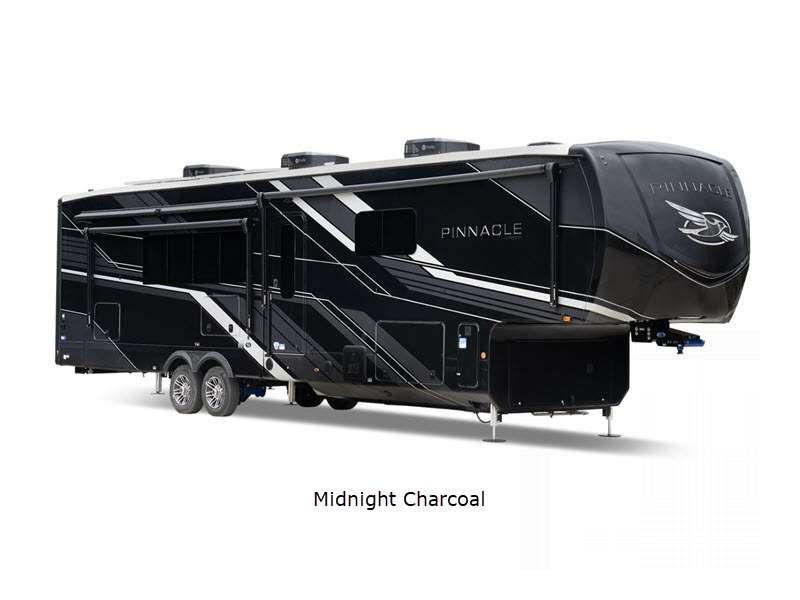

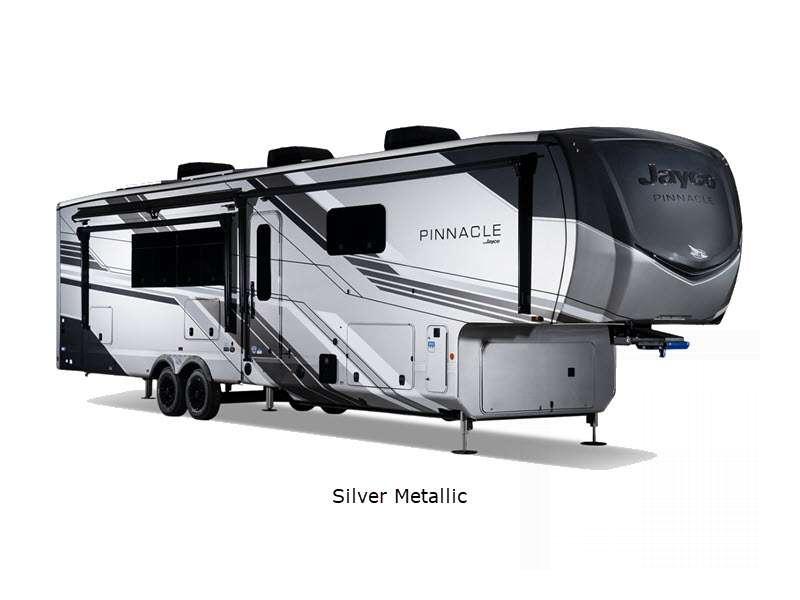

- Full body paint- Midnight Gold, Silver Metallic, Midnight Charcoal
- Generator prep
- MORryde independent suspension and shocks with 8K axles and disc brakes (ABS not available)
- Outside Halo griddle for JayPort system or outside kitchens includes LP quick connect (select models)
- Overlander 2 Solar Package: 30-amp controller, (1) 1800W inverter and (2) 200W solar panels
- Overlander 4 Solar Package: (4) 200W solar panels, (2) 100-amp/hour lithium heated batteries, 60-amp controller, 3000W inverter, DC/DC power converter, soft start power save main 15K A/C, soft start power save for bedroom 15K A/C, battery monitor, energy management system, roof pre-wire for additional solar panels, generator prep capable and heavy gauge steel battery enclosure
- Overlander EXT Solar Package: 3,000W inverter/charger with internal 50-amp transfer switch, energy management system, (6) solar panels with 200W each, (6) 100-amp/hour lithium heated batteries, 12V DC A/C in bedroom, DC to DC battery charger, 100-amp MPPT controller management, generator prep capable
- Queen residential foam-top mattress
- Sani-Con® Turbo waste management system
- Slideout awning(s) (quantity varies by model)
- True interior design choice (Modern Farmhouse or Vintage Farmhouse)
- Truma on-demand hot water system
- Wireless backup/side view/front entry door observation kit with 7 in. monitor
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
